ENDF/B-VIII versus VII

Differences in Total of 1% or More

ENDF/B-VIII includes 557 Evaluations.

ENDF//B-VII includes 423 Evaluations (422 of these are also included in ENDF/B-VIII).

Only 70 of the 422 Evaluations have Total Cross Sections that Differ by 1% or More

Plots of the 70 Evaluations aee Include here - there is one plot per Evaluation of the Etitire Energy Range of the Total: usually 10e-5 eV to at least 20 MeV.

70 Evaluations in which ENDF/B-VIII and VII Total Differ by 1% or More
1-H -1

3-Li-6

4-Be-7

5-B -10

8-O -16

11-Na-23

18-Ar-38

18-Ar-40

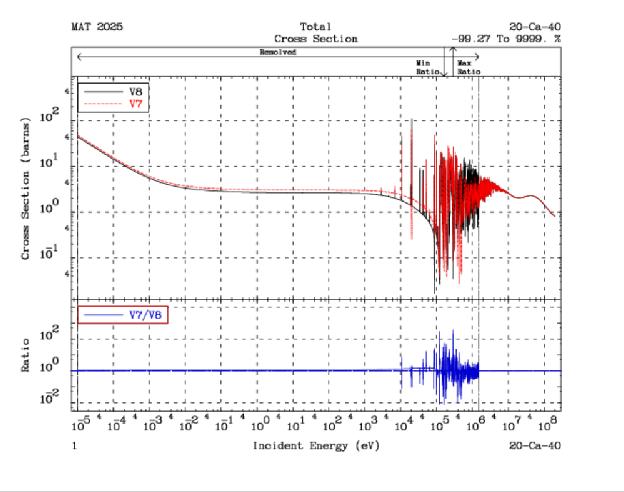

20-Ca-40

21-Sc-45

26-Fe-54

26-Fe-56

26-Fe-57

26-Fe-58

27-Co-58

27-Co-58.M

27-Co-59

28-Ni-59

28-Ni-61

29-Cu-63

29-Cu-65
33-As-74

36-Kr-78

38-Sr-88

40-Zr-90

40-Zr-91

40-Zr-92

40-Zr-94

40-Zr-96

41-Nb-93

45-Rh-105

50-Sn-120

50-Sn-122

50-Sn-124

52-Te-132

54-Xe-123

54-Xe-124

58-Ce-136

60-Nd-143

61-Pm-148.M

62-Sm-144

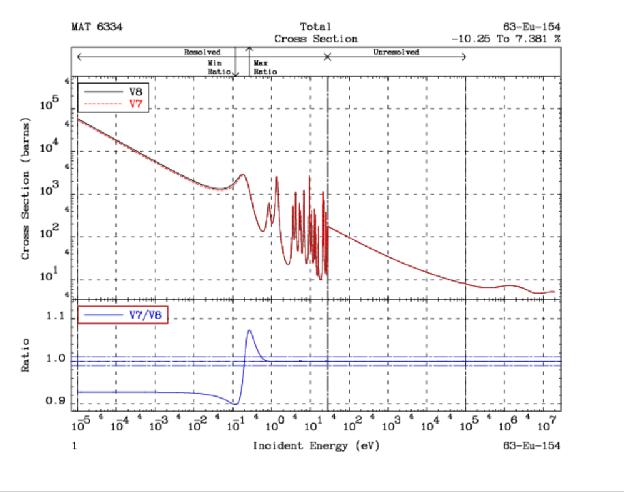

63-Eu-154

72-Hf-174

72-Hf-176

72-Hf-177

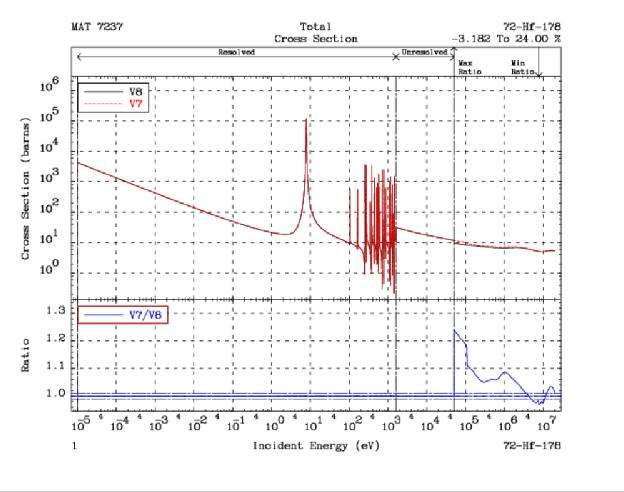

72-Hf-178

72-Hf-179

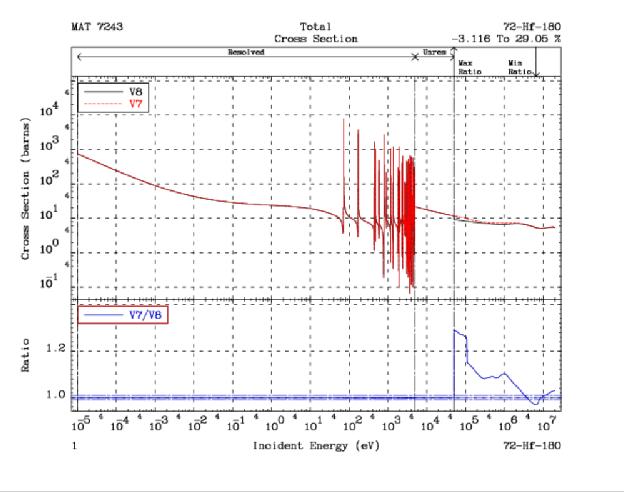

72-Hf-180

73-Ta-180

73-Ta-181

74-W -182

74-W -183

74-W -184

74-W -186

75-Re-185

75-Re-187

79-Au-197

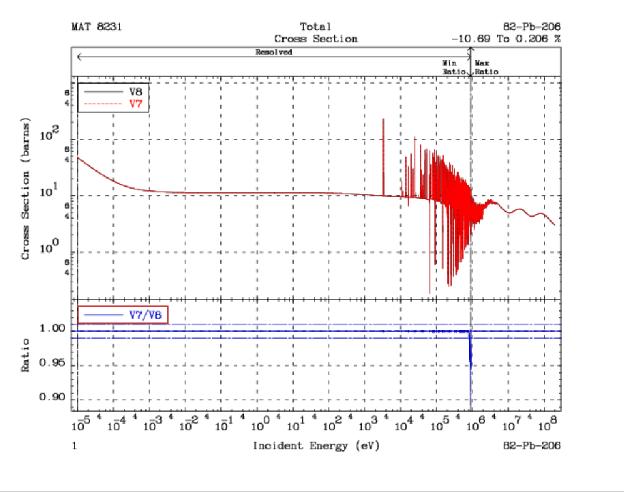

82-Pb-206

92-U -232

92-U -233

92-U -235

92-U -238

92-U -239

92-U -240

92-U -241

94-Pu-239

94-Pu-240

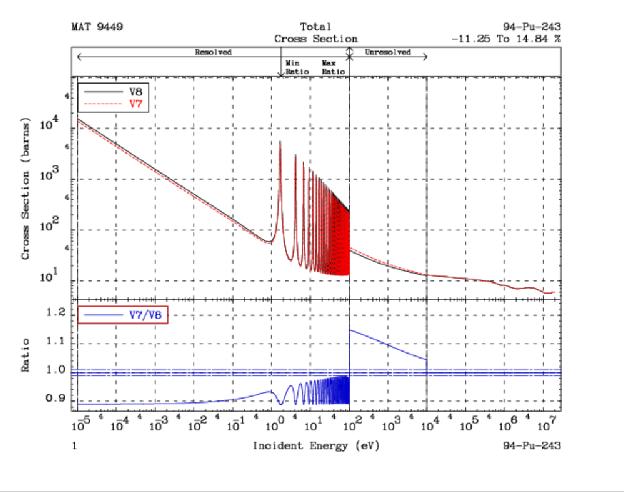

94-Pu-243

95-Am-241

95-Am-243
